Standard Valve Parts
Parts for Standard Player System Valves

We only ship to US addresses


#1111 - Force-Fit Brass Collars (for Standard Valves): 0.215" OD, 0.088" ID, 0.050" thick: 10-99 @ $0.42 ea. $35.00/100

To place an order, Click Here.

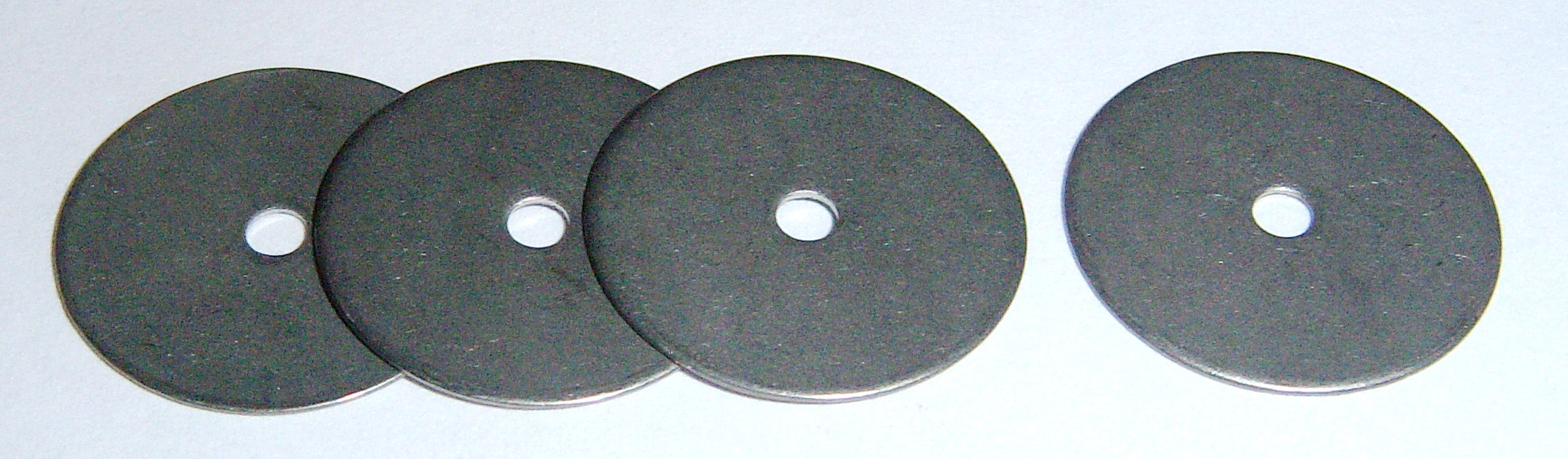

#1115 - Backing Plate - Stainless Steel - (for Standard Valves): 11/16" OD, 0.094" ID, 0.050" thick: 10-99 @ $0.58 ea. $46.40/100
To place an order, Click Here.

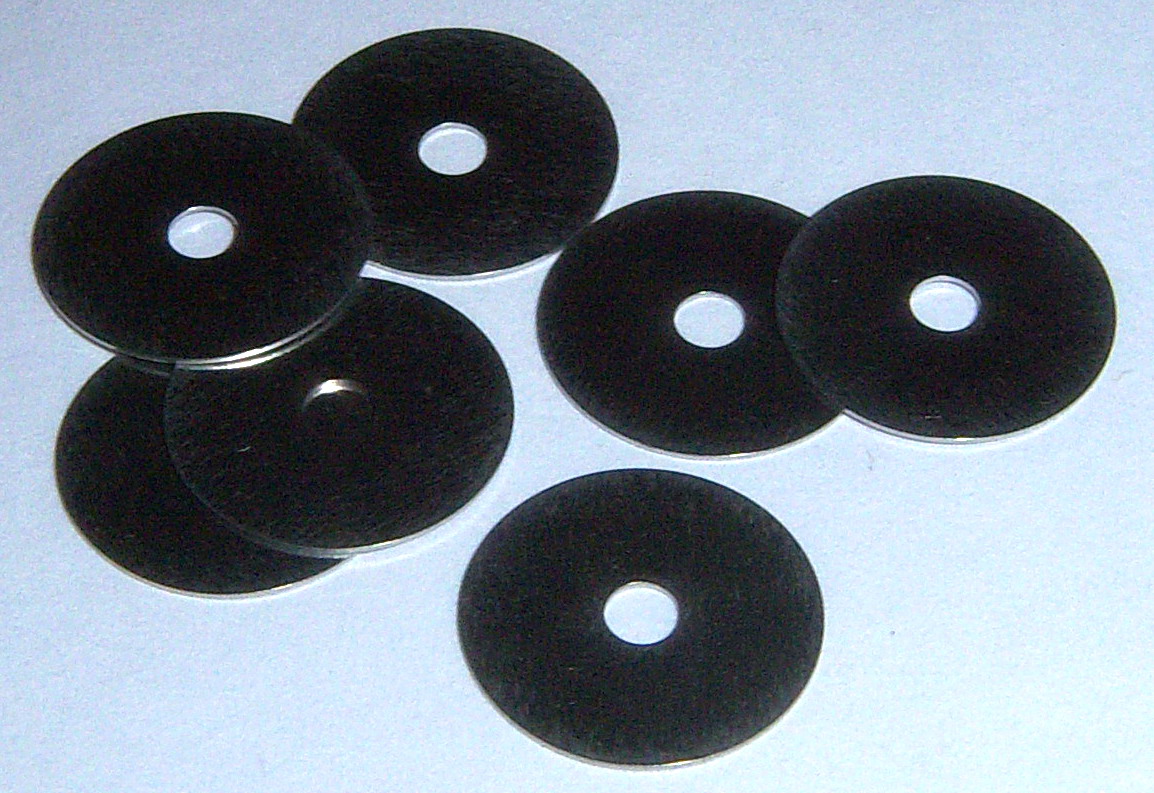

#1119 - Top Plate - Stainless Steel - (for Standard Valves): 15/32" OD, 0.094" ID, 0.010" thick. 10-99 @ $0.50 ea. $40.00/100
To place an order, Click Here.



.

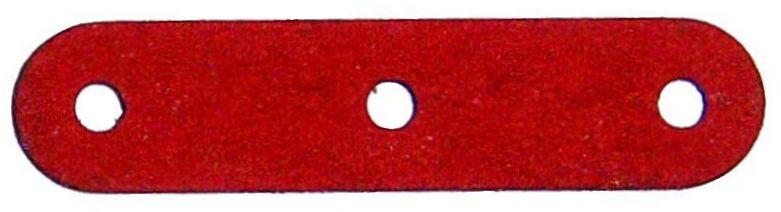

#1118 - 1-1/2" x 3/8", 0.046" thick, screw holes 1-1/8" on center, 0.098" center hole, red or gray fibre material - STANDARD Valve Guide (no bushing): 1-89 @ $0.75 ea. or $60.75/90
To place an order, Click Here.


.

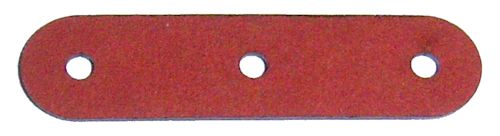

#1109 - 1-5/8" x 3/8", 0.046" thick, screw holes 1-1/4" on center, 0.098" center hole, red or gray fibre material - STANDARD Valve Guide (no bushing): 1-89 @ $0.75 ea. or $60.75/90
To place an order, Click Here.


.

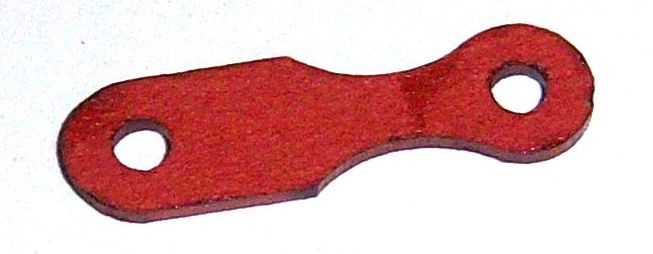

Rear Valve Stem Guide. Stem hole is 0.095". Screw hole is 0.100". Overall length is 0.945" and width is 0.282". Thickness is 0.045". Red or gray fibre material. Cost is $0.45 each. We also sell the small brass screws, used to secure the guide in place, for $22.80/100. We can also have a guide alignment tool custom made for $32.00 plus the shipping cost from the 3-D printer to my business.
To place an order, Click Here.


.

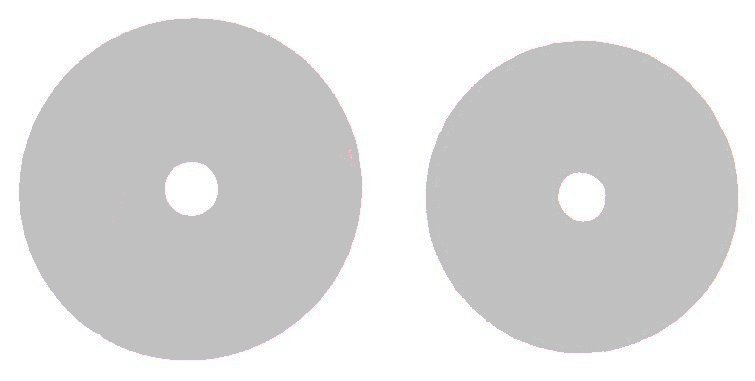

Fibre Backing Disks: These are the disks that are commonly found on the exhaust (or atmosphere side) valves of the Standard Double-Valve Action, the Standard Single-Valve Action, and other actions with a metal valve stem. Diameter of the larger disk is 3/4", with a 0.120" center hole (gray fibre). Diameter of the smaller disk is 11/16", with a 0.110" center hole (gray fibre). Thickness of the fibre material is 0.046". Cost is $0.58 each or $45.00/90.
To place an order, Click Here.

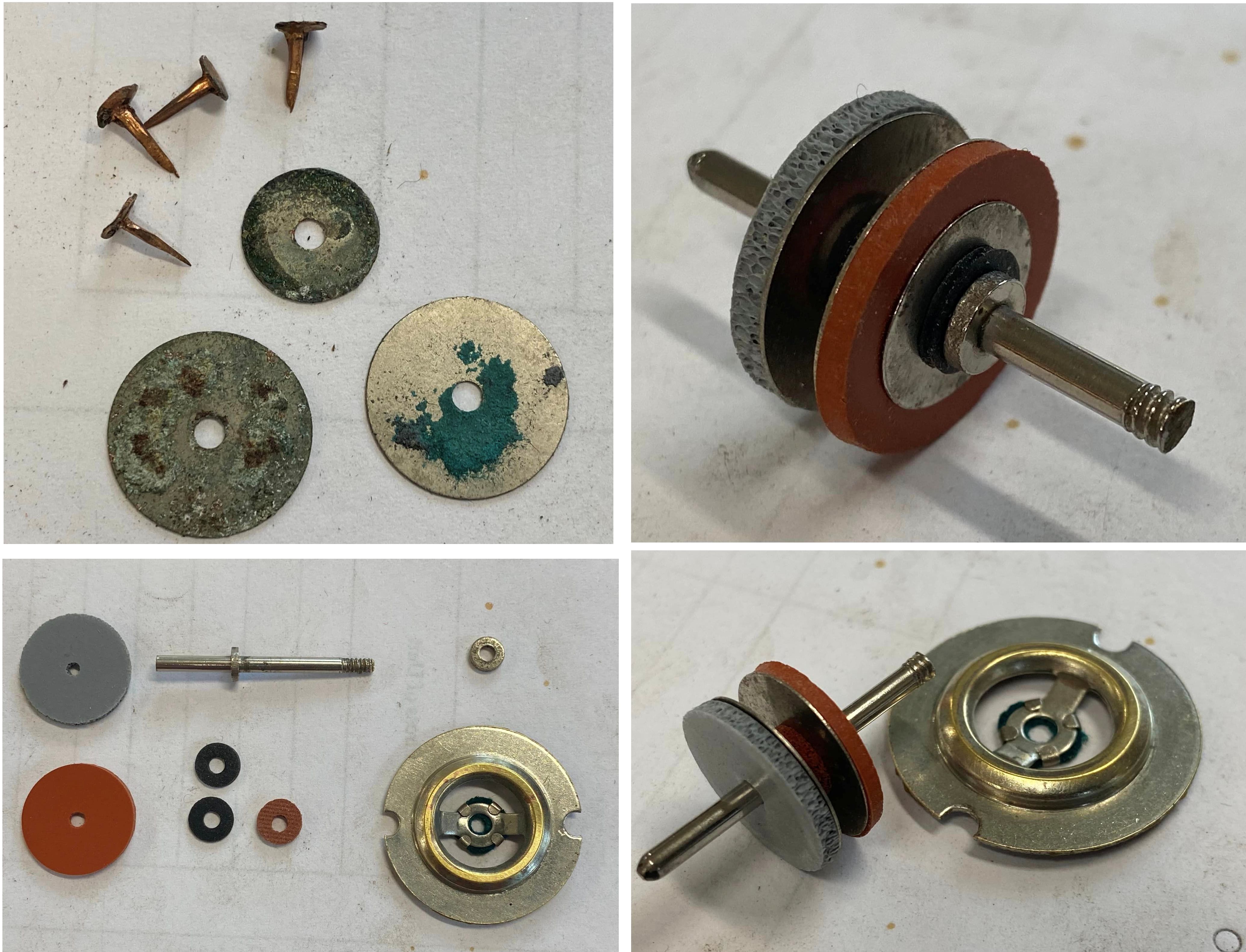

Here is some information about replacement valve facing materials for the Standard and Autopiano that was presented in the Facebook Group 'Player Piano Enthusiast' by Bruce Newman in March of 2024. (Player-Care does not endorse or recommend the use of synthetic materials for valve facings. Use them at your own risk!)

Bruce wrote, "Here are the sources as best as I can come up with for the valve materials:"

1/32" silicone sheet - LEOBRO 3 Pack 15.7"x 11.7" Silicone Mats for Crafts, Silicone Mat, Nonstick Silicone Sheet for Resin Molds, Silicone Craft Mat for Epoxy Resin Clay Paint Tumbler Making, Black White Silicone Mat

Red sponge silicone for the small washers - LMS Heat Resistant Silicone Sponge Foam Rubber Sheet, Texture, High Temp Press, Red 11.8 x11.8 inch 1.5mm Thickness (1)

Red 1/16" thick silicone sheet for the vacuum side valve facings - Silicone - Commercial Grade Red/Orange - 55A - Rubber Sheets & Rubber Rolls - 1/16" Thick x 12" Width x 36" Length

Gray sponge silicone 1/16" thick for atmosphere side valve facings - 1/16" -0.016" to 0.016" 85925K242 30.26 85925K244 42.78 85925K249 70.44 Flame-Retardant Silicone Foam, Strip, Plain Back, 0.062" Thick, 10' Long, 2" Wide


Click on image to see full size picture.
