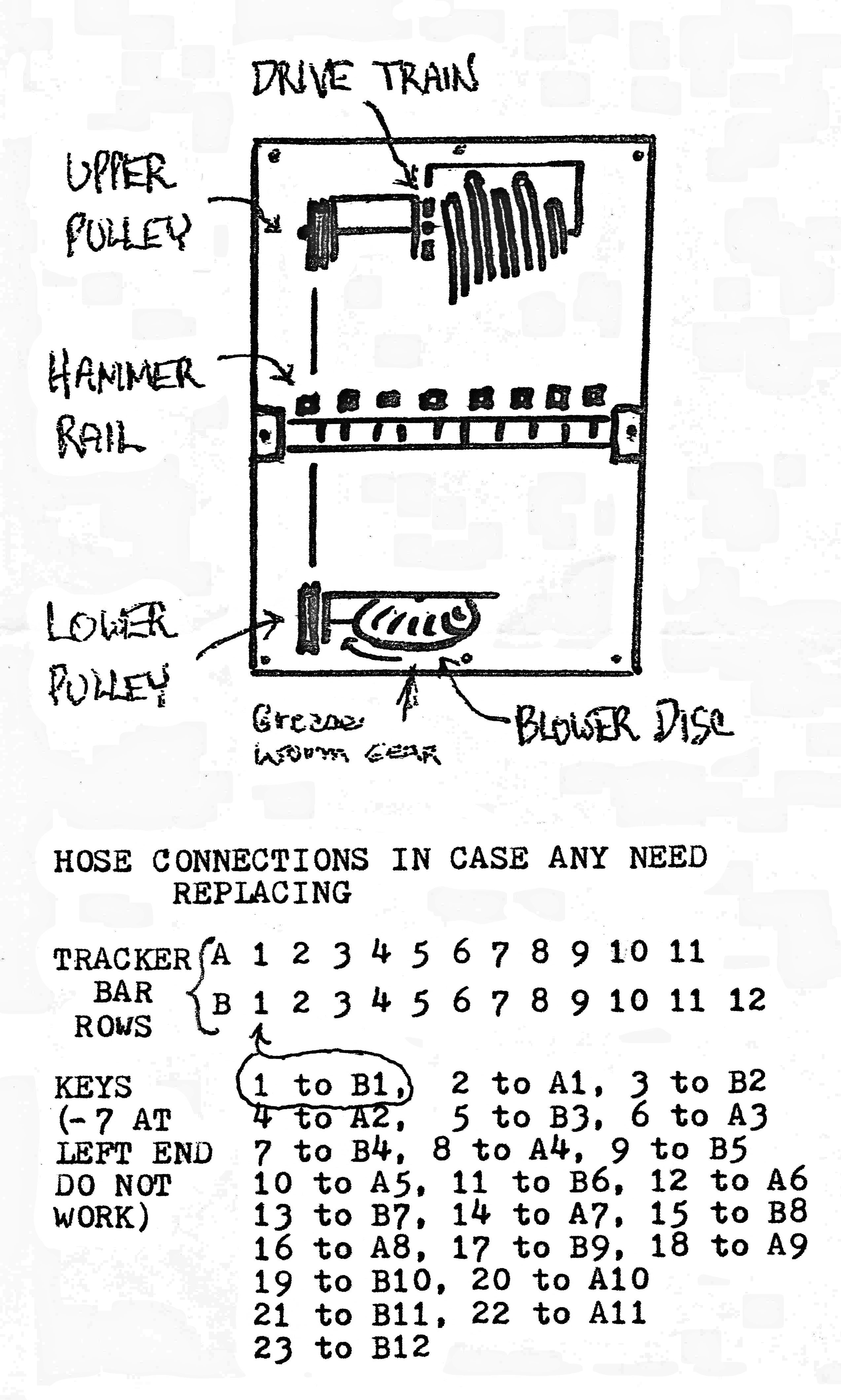

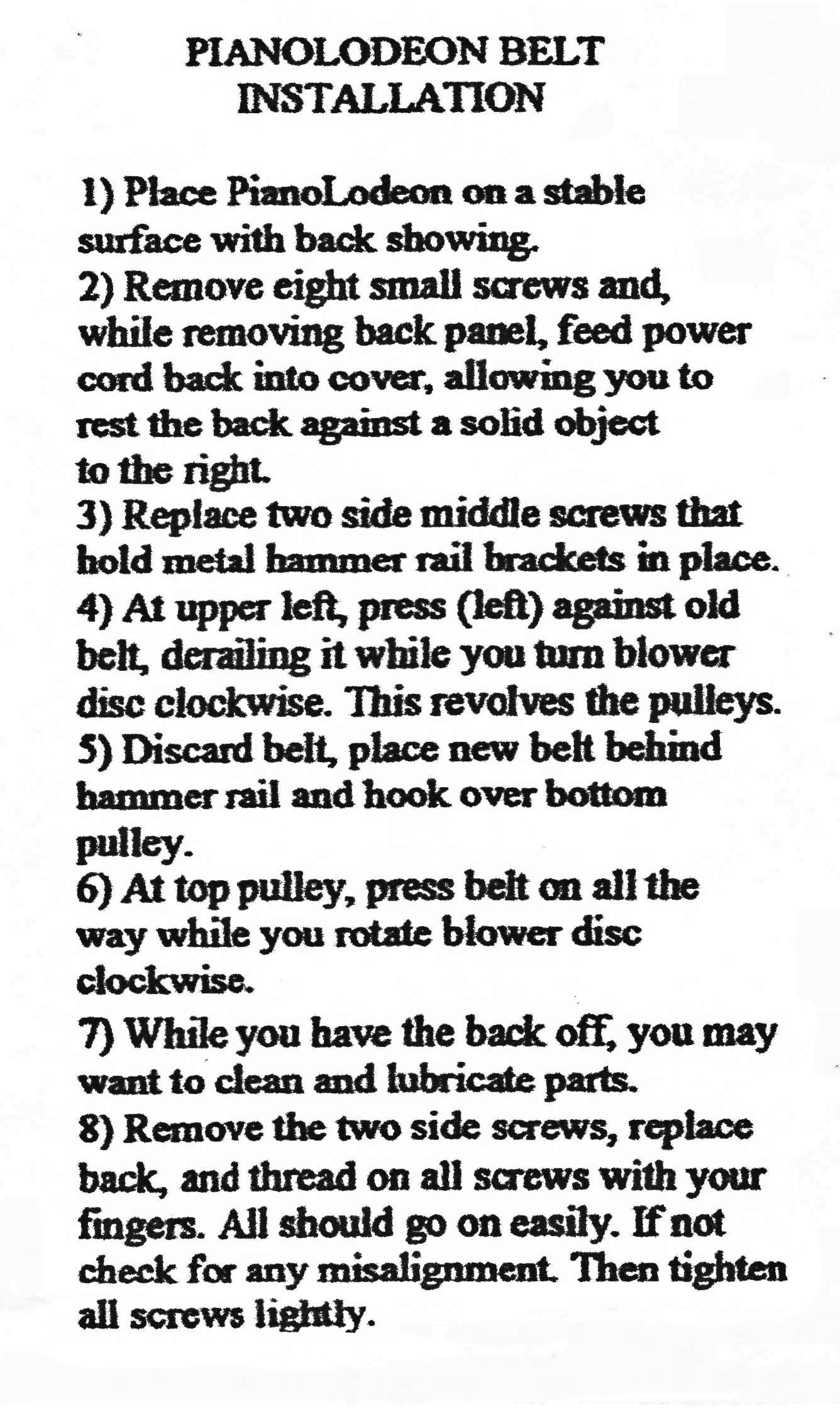

Replacing Tubing and Drive Belt

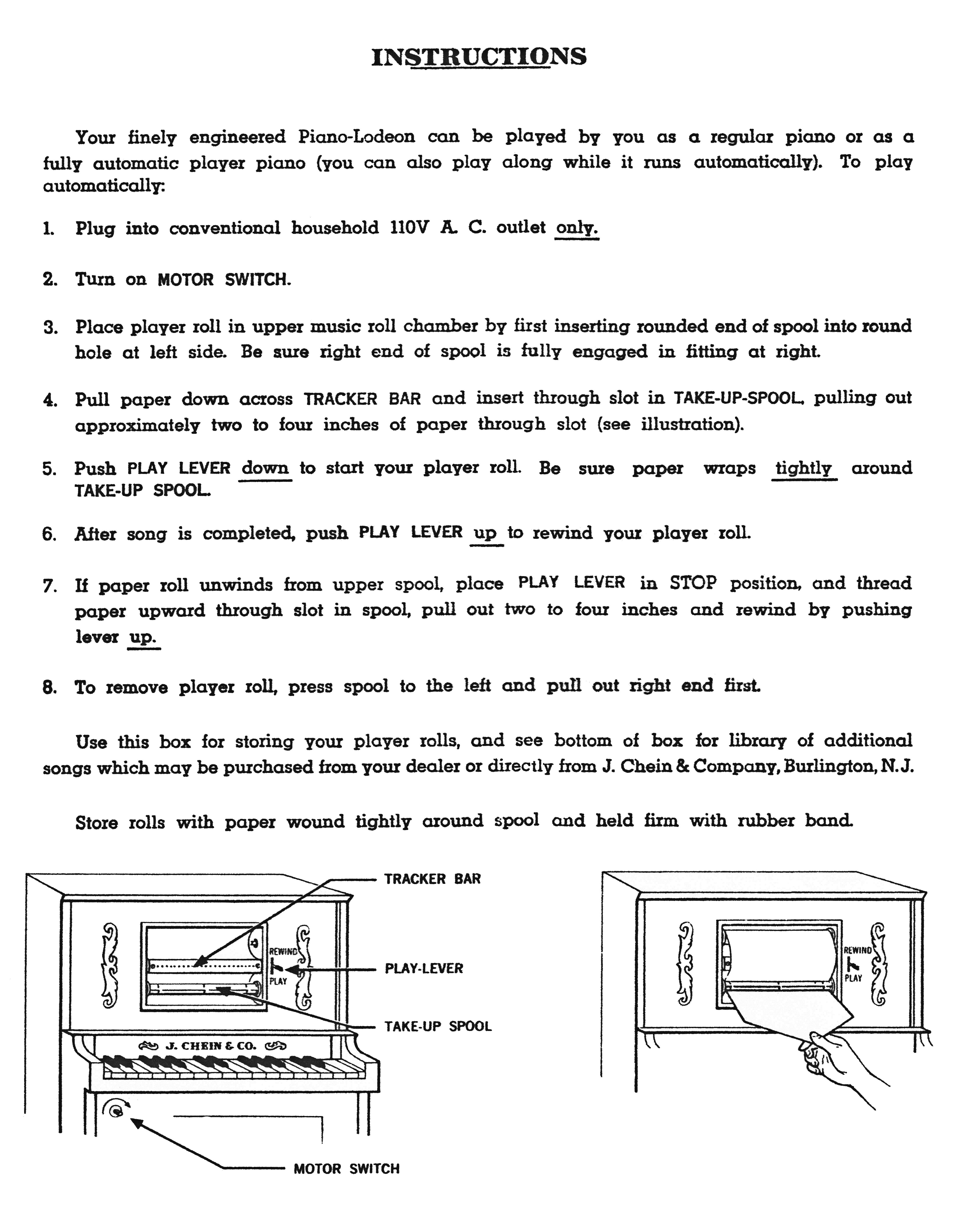

Below is information that is supplied with every drive belt that we sell. Click on any image to see the full size image. Or, click here to see the PDF file -which you can download to your computer.


EDITORS NOTE: The correct size tubing for the trackerbar is 1/4" ID (#8) player piano tubing -click here. You will need 20 feet of tubing.

Here are links to all the information I've collected
about the Piano-Lodeon Toy Player Piano:
Page 1 - Rebuilding Chein PianoLodeon By Mike Kitner
Page 2 - Piano-Lodeon Rollography Update By Jack M. Conway
Page 3 - Piano-Lodeon's Lost Potential By Mike Knudsen
Page 4 - Piano-Lodeon Rolls & Imperial Ind. Co. By Douglas Henderson
Page 5 - Extra information about the PianoLodeon
Page 6 - Piano-Lodeon: Repair Information by John A Tuttle
Page 7 - Piano-Lodeon: Colors and Years by Dale F Rowe
Page 8 - Repairing the Pianolodeon by Arnold Landvoigt
Page 9 - Rebuilding Chein PianoLodeon By Jim Quashnock
Page 10 - Replacing Tubing and Drive Belt
