Aeolian Action |
|

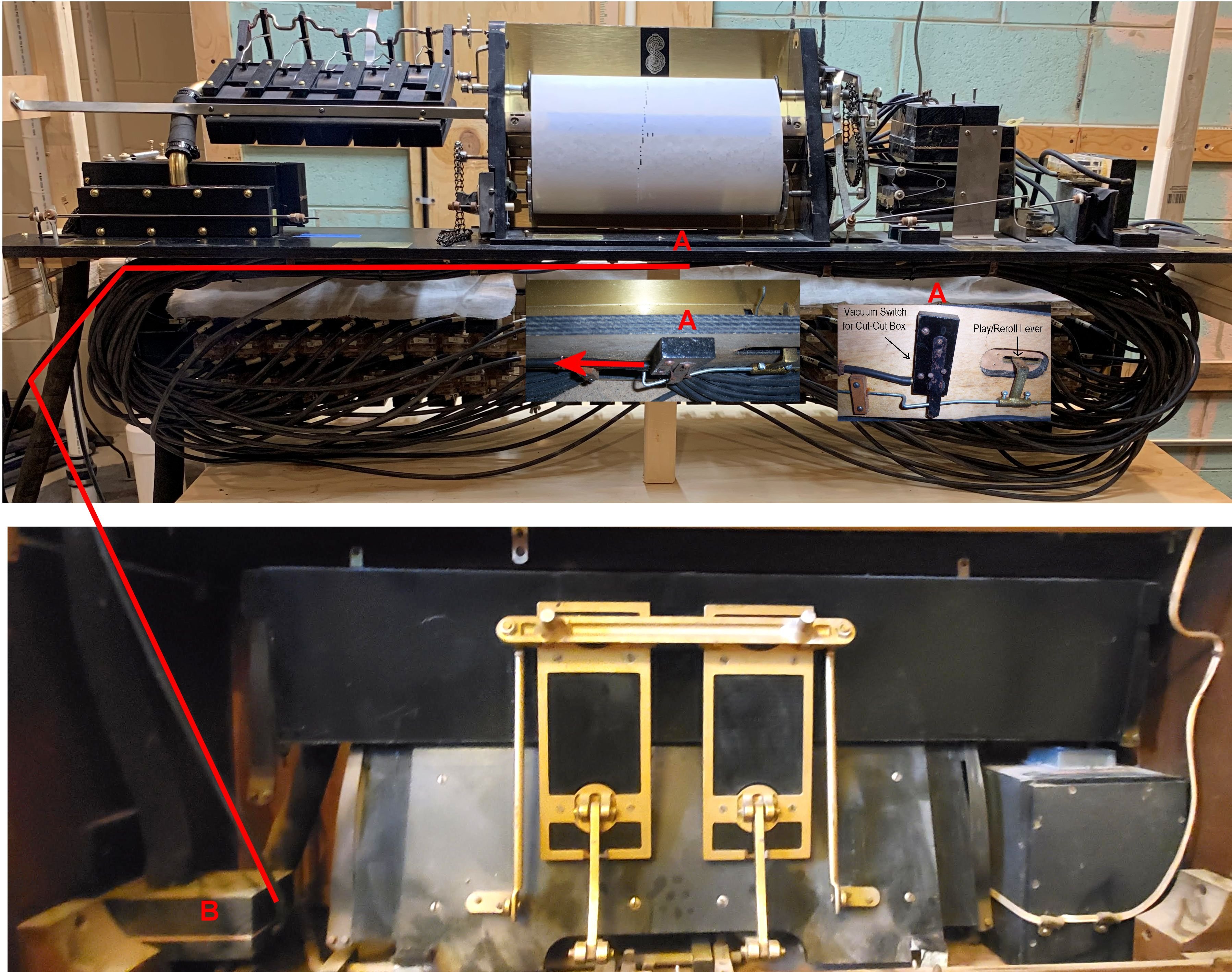

While it is no way complicated, there is no diagram of the tubing for the modern Aeolian Action Cut-Out device in their service manual. In the picture below, the point marked 'A' is a simple spring-type pallet valve. The valve is closed when the system is in the Play mode and open when the system is in the Rewind mode. The action cut-out device is marked 'B'. It controls the vacuum to the stack (vacuum 'On' in Play and 'Off' in Rewind).
Since most of the Aeolian players are now 50+ years old, the tubing that goes from the pallet valve to the action cut-out device gets cracked from old age. When that happens, it's the same as what happens when the pallet valve is 'open'. So, there's no vacuum to the stack. Another not so common problem occurs when the upper section is removed and replaced for maintenance. And, unless the technician or user is not careful, the rubber tube can get pinched closed. When that happens, the music will play backwards as the music roll rewinds. The tubing that connects the pallet valve to the cut-out device is 7/32" ID player tubing, which is available at Player-Care. |
|
